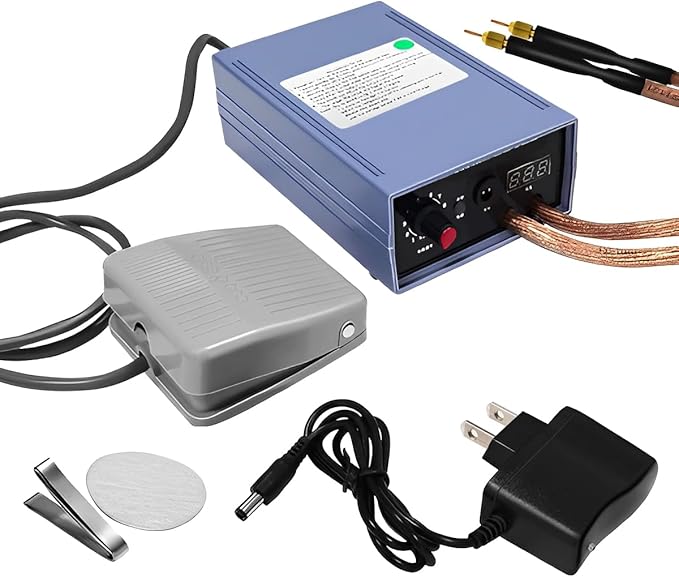

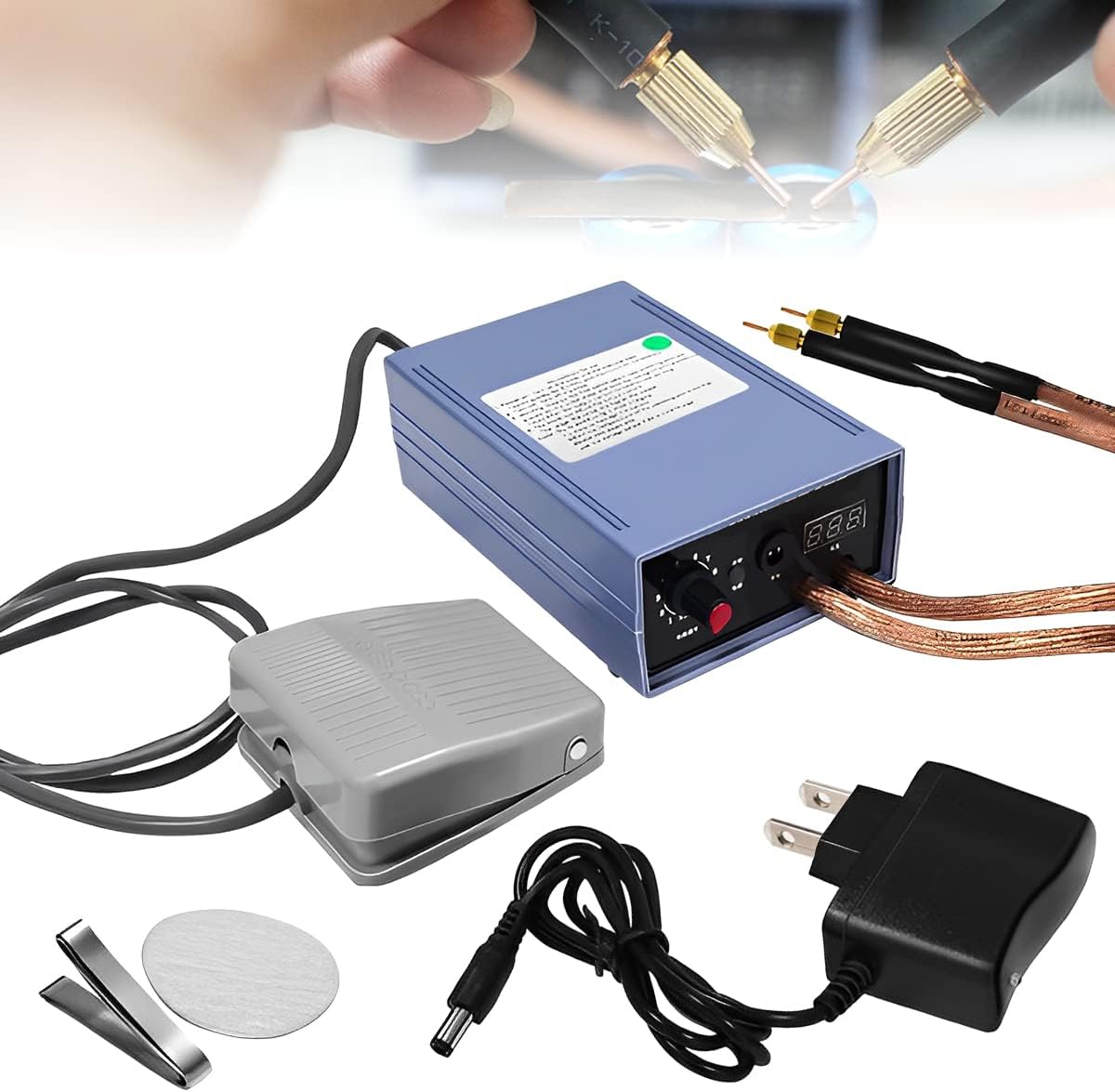

Parts List:

1 x Main Unit 1 x Charger 1 x Nickel Belt 1m 1 x Round Sandpaper 1 x Foot Pedal Switch

Specification:

Product Name: Mini Spot Welder

Product material: ABS+ metal

Battery capacity: 3500mah, 7.4v battery (can be welded about 500 times when fully charged and used without electricity)

Welding 0.1mm, adjust the current to 5 digits

Welding 0.15mm, current adjustment to 6

Welding 0.2mm, the current is adjusted to 8 bits

Instrucions for Use：

Power on: turn on the knob and the indicator light flashes 3 times quickly and then stays on, which means the power on is successful

Shutdown: turn off the knob

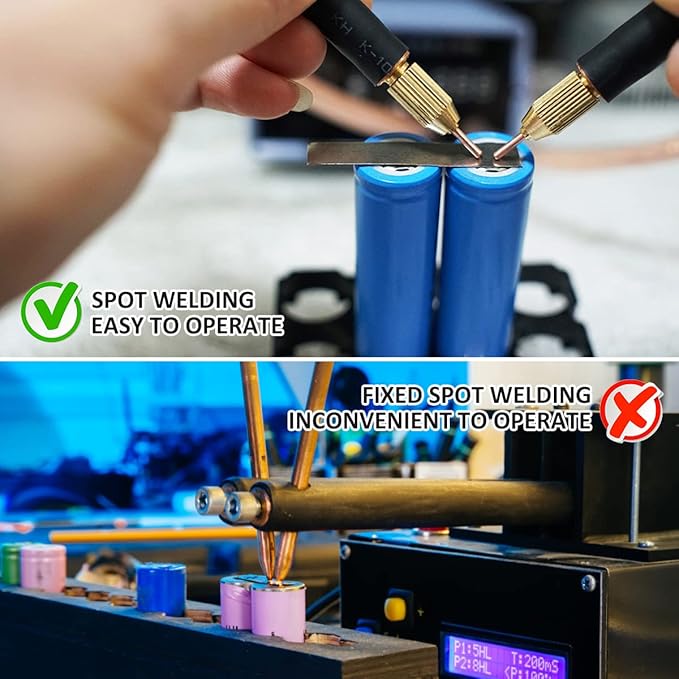

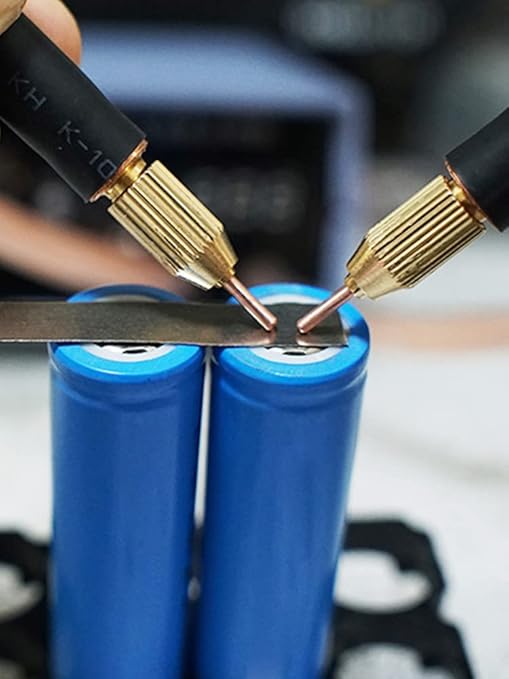

Welding: Put two soldering pens on the nickel sheet and hold the foot switch. The red light flashes 3 times quickly and then outputs current to complete a welding.

The knob can adjust the output current, the larger the value, the higher the output.

Product Description:

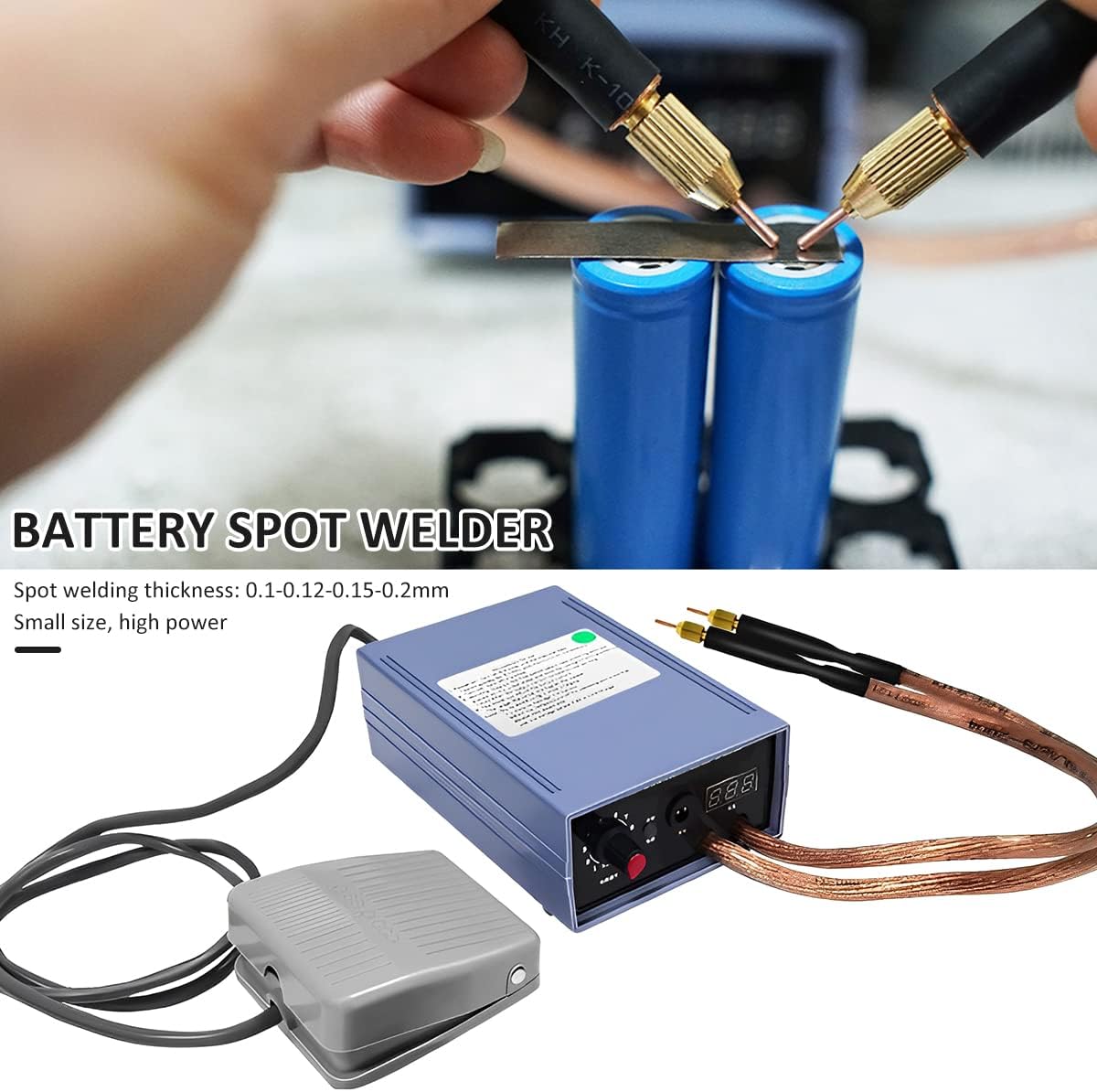

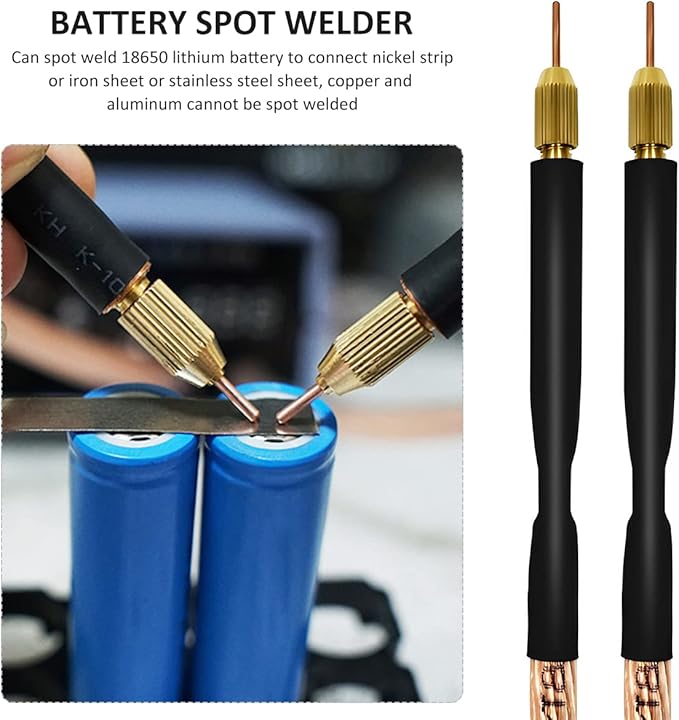

This spot welding machine is used for connecting 18650 lithium battery with nickel strip, or spot welding iron plate and stainless steel plate, not copper and aluminum. The thickness of the spot welder is the nickel plating thickness in mm (mm).

Note

1. Try to avoid using it while charging, it is easy to damage the battery. When the temperature of the soldering pen is too high, please cool it before using it, and charge it in time when the voltage is lower than 7.3v.

2. There may be slight differences between the picture and the actual color of the product. We will do our best to show you the exact color.

3. Please allow slight size differences due to manual measurement.
